Description / Application:

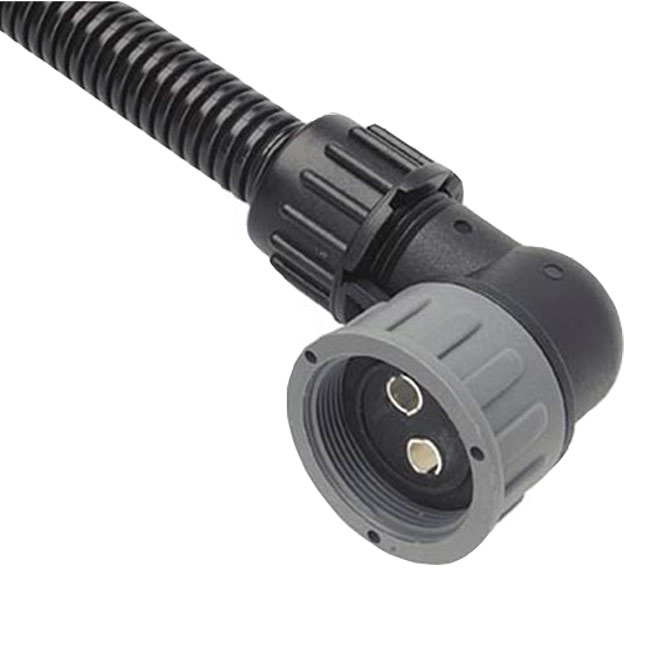

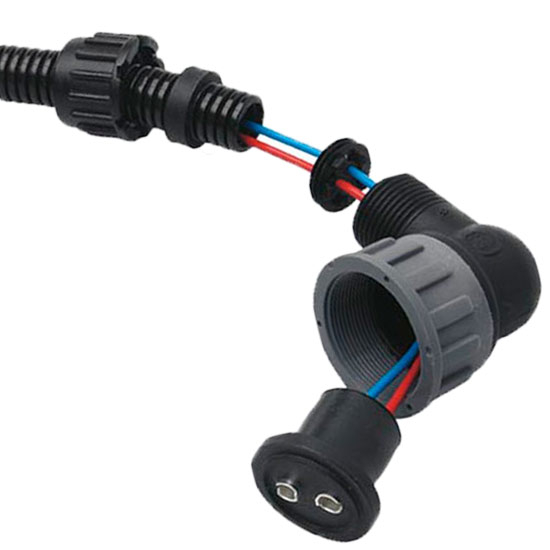

Available in both straight and 90° swivel form this range of connectors interface directly with solenoid switch connectors that have either M27, M24 or 16s bayonet connection point. 2, 3 & 4 pin versions are available, either as complete kits or in individual components. They are all suitable for use with NW 10 normal profile conduits.

Technical Specification / Features:

Material: PA66 (Nylon) Housings, Neoprene seals & brass nickel plated contacts

Temperature Range:  - 25ºC to +80ºC

Sealing Rating: IP67

Features: suitable for  2, 3 and 4 pin solenoid switches

Part Number Description
SCM24-90-2 2 Pole Solenoid Connector M24 90 Deg Swivel Assembley
SCM24-90-3 3 Pole Solenoid Connector M24 90 Deg Swivel Assembley
SCM27-90-2 2 Pole Solenoid Connector M27 90 Deg Swivel Assembley
SCM27-90-3 3 Pole Solenoid Connector M27 90 Deg Swivel Assembley
SCM27-90-4 4 Pole Solenoid Connector M27 90 Deg Swivel Assembley
SCM24-S-2 2 Pole Solenoid Connector M24 Straight Swivel Assembley
SCM24-S-3 3 Pole Solenoid Connector M24 Straight Swivel Assembley
SCM27-S-2 2 Pole Solenoid Connector M27 Straight Swivel Assembley
SCM27-S-3 3 Pole Solenoid Connector M27 Straight Swivel Assembley
SCM27-S-4 4 Pole Solenoid Connector M27 Straight Swivel Assembley
SCB-90-2 2 Pole Solenoid Connector 90 Deg Bayonet Swivel Assembley
SCB-90-3 3 Pole Solenoid Connector 90 Deg Bayonet Swivel Assembley
SCB-90-4 4 Pole Solenoid Connector 90 Deg Bayonet Swivel Assembley
SCB-S-2 2 Pole Solenoid Connector Str't Bayonet Swivel Assembley
SCB-S-3 3 Pole Solenoid Connector Str't Bayonet Swivel Assembley
SCB-S-4 4 Pole Solenoid Connector Str't Bayonet Swivel Assembley
9800101 M24 90deg Swivel Connector For NW10 Conduit Connection
9800557 M24 Straight Swivel Connector For NW10 Conduit Connection
9800810 M27 90° Swivel Connector Grey For NW10 Conduit Connection
9800794 M27 Straight Swivel Connector For NW10 Conduit Connection
9800603 16s 90° Swivel Bayonet Conn. For NW10 Conduit Connection
9800611 16s Straight Bayonet Conn. For NW10 Conduit Connection
7800592 RSG05 Sealing Grommet 2 Pole
7800593 RSG06 Sealing Grommet 3 Pole
7800665 RSG02 Sealing Grommet 2 Pole
7800673 RSG03 Sealing Grommet 3 Pole
7800681 RSG04 Sealing Grommet 4 Pole
7800630 RSG02-B Sealing Grommet 2 Pole
7800622 Neoprene Housing RSG03-B
8113647 Multiple Way Single Wire Seal For NW10 Threaded Outlet
CN10 Cap Nut For NW10 - Black
8117101 Neoprene Sealing Ring NW10
7702965 4.0mm Ø Socket Contact Solder Type - Phosphur Bronze
7702973 4.0mm Ø Socket Contact Crimp Type
