Description / Application:

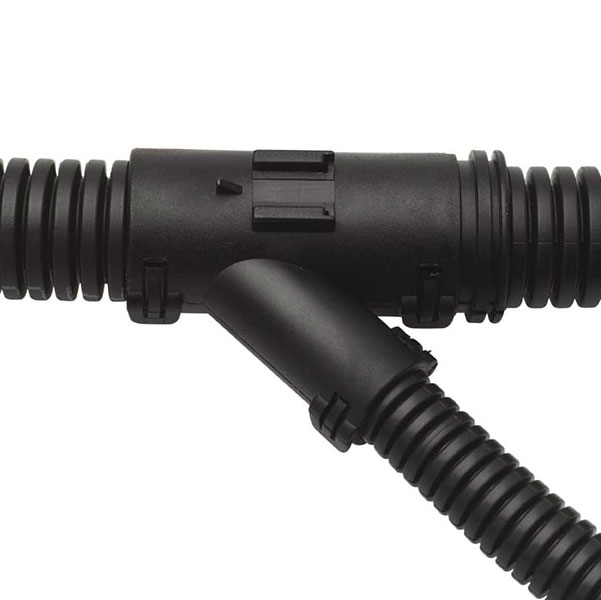

Suitable for use with all types of Schlemmer conduit, these fittings are designed to fit externally and lock together to provide protection to a 'Y' junction on a harness.

Available in numerous size combinations the range can be made more versatile by the use of a reducer to accomodate smaller conduit sizes.

Technical Specification / Features:

Material: Polyamide 66

Temperature Range: -40ºC to +135ºC

Features: Integral conduit retention clips ensure quick assembly requiring no special tools and a high pull off force.

Part Number Description
9817050 External Y Piece NW4.5-4.5-4.5
9817080 External Y Piece NW7.5-4.5-4.5
9817083 External Y Piece NW7.5-4.5-7.5
9817079 External Y Piece NW7.5-7.5-7.5
9817040 External Y Piece NW8.5-8.5-8.5
9817503 External Y Piece NW10-4.5-7.5
9817042 External y Piece NW10-4.5-8.5
9817041 External Y Piece NW10-8.5-8.5
9817030 External Y Piece NW10-8.5-10
9817303 External Y Piece NW10-10-10
9817304 External Y Piece NW13-7.5-10
9817031 External Y Piece NW13-8.5-10
9817037 External Y Piece NW13-8.5-8.5
9817032 External Y Piece NW13-8.5-13
9817306 External Y Piece NW13-10-10
9817305 External Y Piece NW13-10-13
9817308 External Y Piece NW13-13-13
9817039 External Y Piece NW17-8.5-13
9817033 External Y Piece NW17-10-10
9817035 External T Piece NW17-10-13
9817038 External Y Piece NW17-10-17
9817310 External Y Piece NW17-13-10
9817036 External Y Piece NW17-13-13
9817201 External Y Piece NW17-13-17
9817309 External Y Piece NW17-17-10
9817200 External Y Piece NW22-10-17
9817203 External Y Piece NW22-13-17
9817202 External Y Piece NW22-17-17
9817204 External Y Piece NW22-4.5-22
9817205 External Y Piece NW22-7.5-22
9817034 External Y Piece NW22-10-22
9817311 External Y Piece NW22-13-22
9817302 External Y Piece NW22-22-22
9817300 External Y Piece NW26-22-22
9817242 External Y Piece NW26-10-26
9817240 External Y Piece NW29-22-26
9817044 External Y Piece NW29-26-29
9817070 External Y Piece NW37-17-29
9817244 External Y Piece NW37-29-22
9817241 External Y Piece NW37-37-22
