Reducers For T & Y Pieces
Reducers For T & Y Pieces
Reducers For T & Y Pieces

Reducers For T & Y Pieces

Description / Application:

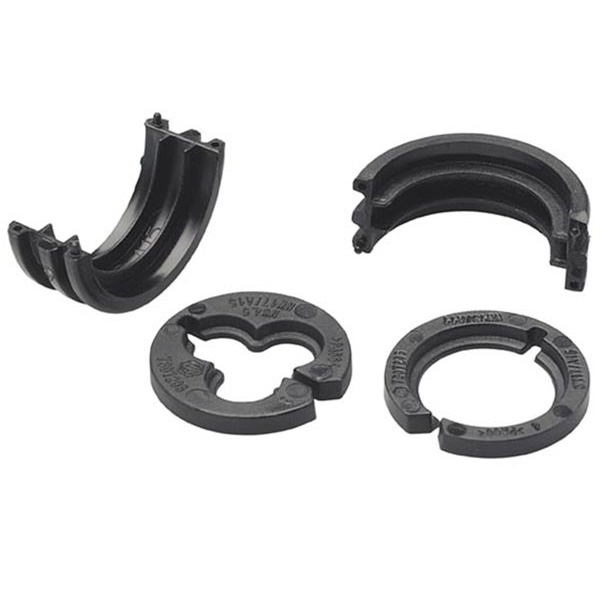

Used in conjunction with both 'T' or 'Y' pieces these fittings can either enable a conduit outlet to be reduced to a smaller size or become a multiple conduit outlet.

Technical Specification / Features:

Material: Polyamide 66

Temperature Range: -40ºC to +135ºC

Part Number Description

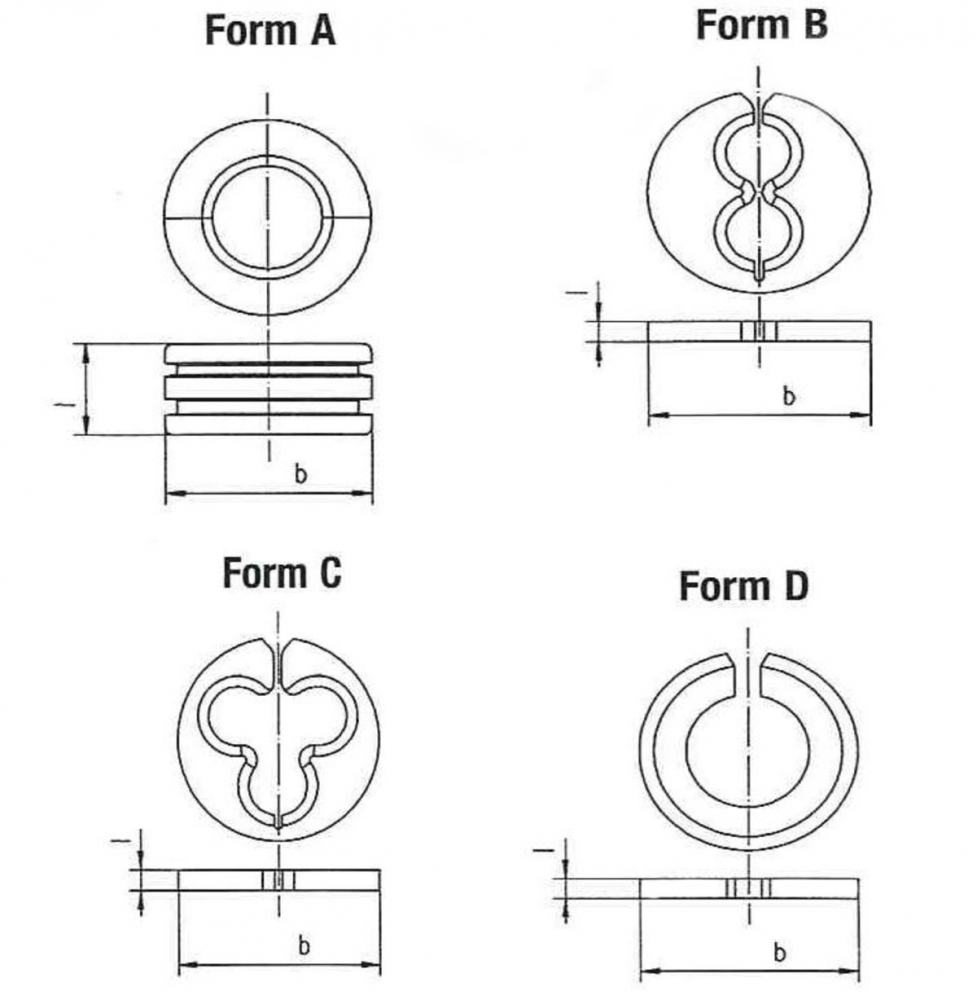

7807270 Outlet Reducer NW8.5-4.5 Type A
7807272 Outlet Reducer NW10-4.5 Type A
7807299 Outlet Reducer NW10-4.5 Type D
7807276 Outlet Reducer NW10-7.5 Type A
7807297 Outlet Reducer NW10-7.5 Type D
7807288 Outlet Reducer NW10-8.5 Type D
7807278 Outlet Reducer NW13-7.5 Type A
7807280 Outlet Reducer NW13-10 Type A
7807766 Outlet Reducer NW14-13
7807283 Outlet Reducer NW17-13 Type A
7807296 Outlet Reducer NW17-13 Type D
7807289 Outlet Reducer NW17-2x4.5 Type B
7807293 Outlet Reducer NW17-3x4.5 Type C
7807294 Outlet Reducer NW22-13 Type D
7807282 Outlet Reducer NW22-17 Type A
7807187 Outlet Reducer NW22-2X4.5 Type B
7807697 Outlet Reducer NW22-2x4.5-7.5 Type C
7807290 Outlet Reducer NW22-2x7.5 Type B
7807761 Outlet Reducer NW22-2x7.5-4.5 Type C
7807698 Oulet Reducer NW22-3x4.5 Type C
7807292 Outlet Reducer NW22-3X7.5 Type C
7807765 Outlet Reducer NW22-7.5-4.5
7807291 Outlet Reducer NW22-8.5 & 7.5 Type B
7807654 Outlet Reducer NW26-22 Type D
7807295 Outlet Reducer NW29-3X8.5 Type C
7807285 Outlet Reducer NW29-26 Type A
7807338 Outlet Reducer NW22-2x7.5-10
7807339 Outlet Reducer NW26-17 Type A
7807340 Outlet Reducer NW26/22
