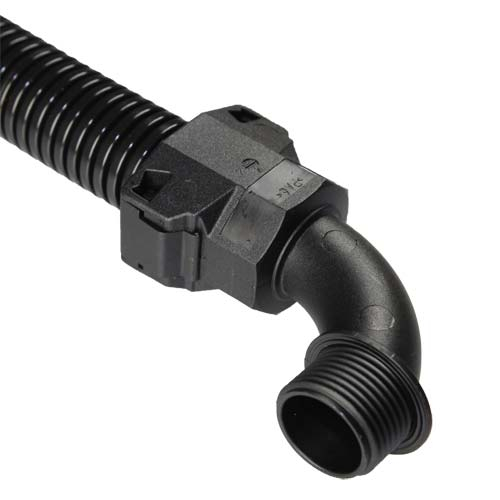

SEM Fast 90º Elbow Fitting
SEM Fast 90º Elbow Fitting

SEM Fast 90º Elbow Fitting

 SEM Fast 90º Fitting

Description / Application:

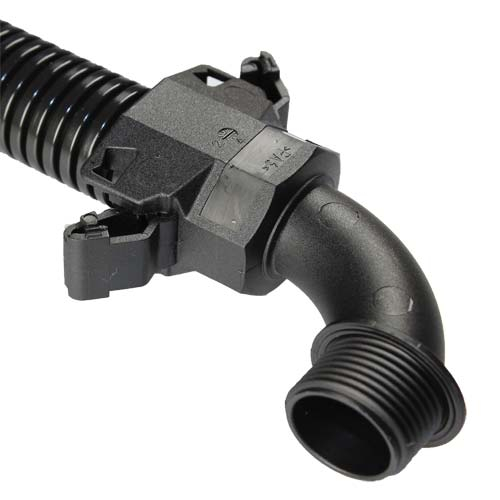

The unique design of the Schlemmer SEM Fast range of fittings enables a conduit to be terminated with a threaded adaptor in two easy actions. Simply twist the conduit slightly as it is inserted to the end of the fitting and snap the locking wings into position to secure the fitting to the conduit providing a weather proof seal to IP65. For applications that require an IP67 seal, the recommended 'O' ring should be used over the last corrugation of the tube before it is located into the fitting.

Ideally suited for applications where a conduit run needs to be terminated into either a threaded entry or the 'knock out' of a junction box.

SEM Fast fittings can easily be removed from the conduit with the use of an electricians screw driver and used again - no special tools are required.

These parts can be used with normal profile & UFW profile un-slit conduits. It is important the conduit is cut squarely, preferably on top of a crest, to achieve the correct IP rating.

Technical Specification / Features:

Material: PA66

Colour: Black

Features: One part compact design, simple to use, high pull off force, no special tools required.

Part Number Description
3805200 SEM Fast 90 Deg Male Fitting For NW10 With M16 Thread
3805201 SEM Fast 90 Deg Male Fitting For NW10 With PG09 Thread
3805205 SEM Fast 90 Deg Male Fitting For NW12/13 With M16 Thread
3805206 SEM Fast 90 Deg Male Fitting For NW12/13 With M20 Thread
3805207 SEM Fast 90 Deg Male Fitting For NW12/13 With PG11 Thread
3805211 SEM Fast 90 Deg Male Fitting For NW17 With M20 Thread
3805212 SEM Fast 90 Deg Male Fitting For NW17 With M25 Thread
3805213 SEM Fast 90 Deg Male Fitting For NW17 With PG16 Thread
3805217 SEM Fast 90 Deg Male Fitting For NW23 With M25 Thread
3805218 SEM Fast 90 Deg Male Fitting For NW23 With M32 Thread
3805219 SEM Fast 90 Deg Male Fitting For NW23 With PG21 Thread
3805223 SEM Fast 90 Deg Male Fitting For NW29 With M32 Thread
3805224 SEM Fast 90 Deg Male Fitting For NW29 With M40 Thread
3805225 SEM Fast 90 Deg Male Fitting For NW29 With PG29 Thread
3805229 SEM Fast 90 Deg Male Fitting For NW37 With M40 Thread
3805231 SEM Fast 90 Deg Male Fitting For NW37 With PG36 Thread
3805235 SEM Fast 90 Deg Male Fitting For NW50 With M50 Thread
3805236 SEM Fast 90 Deg Male Fitting For NW50 With M63 Thread
3805237 SEM Fast 90 Deg Male Fitting For NW50 With PG48 Thread
8112800 SEM Fast O Ring For Conduit NW7.5 Norm Profile
8112801 SEM Fast O Ring For Conduit NW8.5 Norm Profile
8112802 SEM Fast O Ring For Conduit NW7.5 UFW & NW10 Norm Profile
8112803 SEM Fast O Ring For Conduit NW8.5 UFW & NW13 Norm Profile
8112804 SEM Fast O Ring For Conduit NW12 Norm Profile
8112805 SEM Fast O Ring For Conduit NW10/13 UFW Profile
8112806 SEM Fast O Ring For Conduit NW17 UFW Profile
8112807 SEM Fast O Ring For Conduit NW17 Norm Profile
8112808 SEM Fast O Ring For Conduit NW22 Norm Profile
8112809 SEM Fast O Ring For Conduit NW23 Norm Profile
8112810 SEM Fast O Ring For Conduit NW22/23 UFW & NW29 Norm Profil
8112811 SEM Fast O Ring For Conduit NW37 Norm Profile
8112812 SEM Fast O Ring For Conduit NW29 UFW Profile
8112813 SEM Fast O Ring For Conduit NW50 Norm Profile
8112814 SEM Fast O Ring For Conduit NW37 UFW Profile
